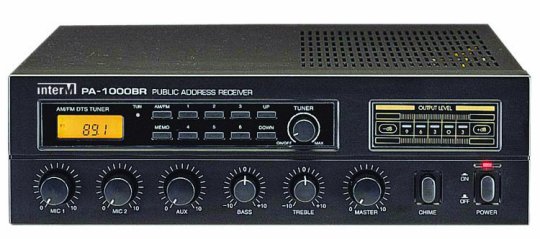

IM-PA-1000BR
Click to enlarge

30 Watt Mixer Receiver
Model# IM-PA-1000BR

List Price:$499.00
Price:$357.14
Save Up To:$141.86 (28%)

Quantity:


Wishlist Add to Wishlist
Email Email a Friend
Print Print This Page
Share Share This




Mixer receiver with 30 watts of power, digital AM/FM tuner with 12-station preset memory, and priority voice activated muting for telephone mic inputs.

Features



• Mixer receiver with 30 watts of power at <0.5%THD • Adjustable telephone paging input
• 3 mixable inputs (mic1, mic2 & aux) • 4 note chime with external contact or front panel switch
• Digital AM/FM tuner with 12-station preset memory • Mono 4ohm, 8ohm, 25V, or 70V outputs
• Priority voice activated muting for telephone mic inputs • Bass & treble tone controls

Details



  • Output power: 30W/100V line
  • Inputs: - 3 Inputs - MIC 1, MIC 2 & AUX
  • Inputs have both XLR and " jacks
  • Muting for priority: - Input MIC 1 has automatic priority over MIC 2 and AUX (defeatable)
  • Telephone input has automatic priority over all other inputs
  • Remote Chime
  • Telephone Input & Music-on hold
  • Tuner Memory


    • Rated Power Output (THD 1%) 30W
    Output Level/Impedance (Transformer) 100V/333ohm, 15V/8ohm, 11V/4ohm
    Pre Amp Out 1v/600ohm
    Input
    Sensitivity / Impedance    		 Mic 1,2 PL55 1mV/600ohm
    XLR 0.3mV/600ohm
    AUX 100mV/10kohm
    Amp In 1V/10kohm
    Telephone In 0.775V/600ohm
    Frequency response Amp In 60Hz - 15kHz
    AUX 80Hz - 15kHz
    Mic 1,2 120Hz - 10kHz
    Telephone In 330Hz - 3.3kHz
    Tone Control Treble (10kHz) ± 10dB
    Tone Control Bass (100Hz) ± 10dB
    Idle Current 20 - 50mA
    DC Offset Voltage 0V
    Tuner Section
    (PA-1000BR)    		 Tuning Range U.S.A:FM 87.5-108MHz ,
    AM 530kHz-1620kHz
    EUROPE:FM 87.5-108MHz,
    AM 522kHz-1620kHz
    Antenna Input FM:300ohm, BAL or 75ohm, UNBAL
    AM:Low Impedance Loop Antenna
    Usable Sensitivity FM 2µV, AM 3µV
    S/N FM 60dB, AM 50dB
    Power Source AC 110~240V, 50/60Hz
    Power Consumption 80W
    Net Weight 4.8kg
    Dimensions 300(W) x 88(H) x 260(D) mm
